GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)

Plug-and-play replacement stator from RM Stator.

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 26 mm
Length of wires stator to grommet: 105 mm
Length of wires grommet to plug: 275 mm
Length of pickup coil's wire to grommet: 75 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.5 ohms +-20%
Pickup: Blue/Yellow to Green = 232 ohms +-20%

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included
Connectors included
Rubber grommet included
All products shipped are tested

$89.66

Original: $298.87

-70%

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)—

$298.87

$89.66

More Images

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118) - Image 2

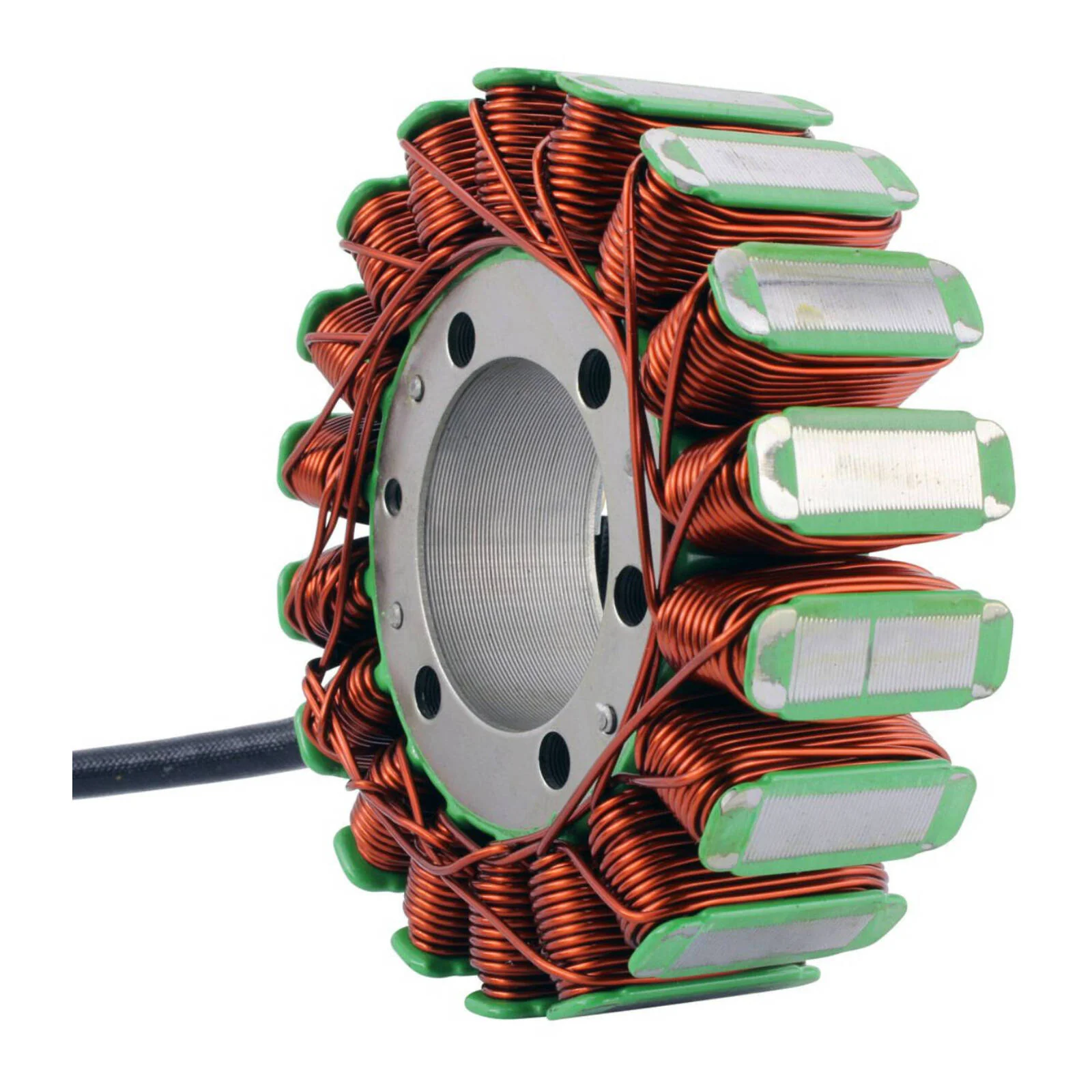

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118) - Image 3

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)

Plug-and-play replacement stator from RM Stator.

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 26 mm
Length of wires stator to grommet: 105 mm
Length of wires grommet to plug: 275 mm
Length of pickup coil's wire to grommet: 75 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.5 ohms +-20%
Pickup: Blue/Yellow to Green = 232 ohms +-20%

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included
Connectors included
Rubber grommet included
All products shipped are tested

Product Information

Shipping & Returns

Description

Plug-and-play replacement stator from RM Stator.

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 26 mm
Length of wires stator to grommet: 105 mm
Length of wires grommet to plug: 275 mm
Length of pickup coil's wire to grommet: 75 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.5 ohms +-20%
Pickup: Blue/Yellow to Green = 232 ohms +-20%

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included
Connectors included
Rubber grommet included
All products shipped are tested
