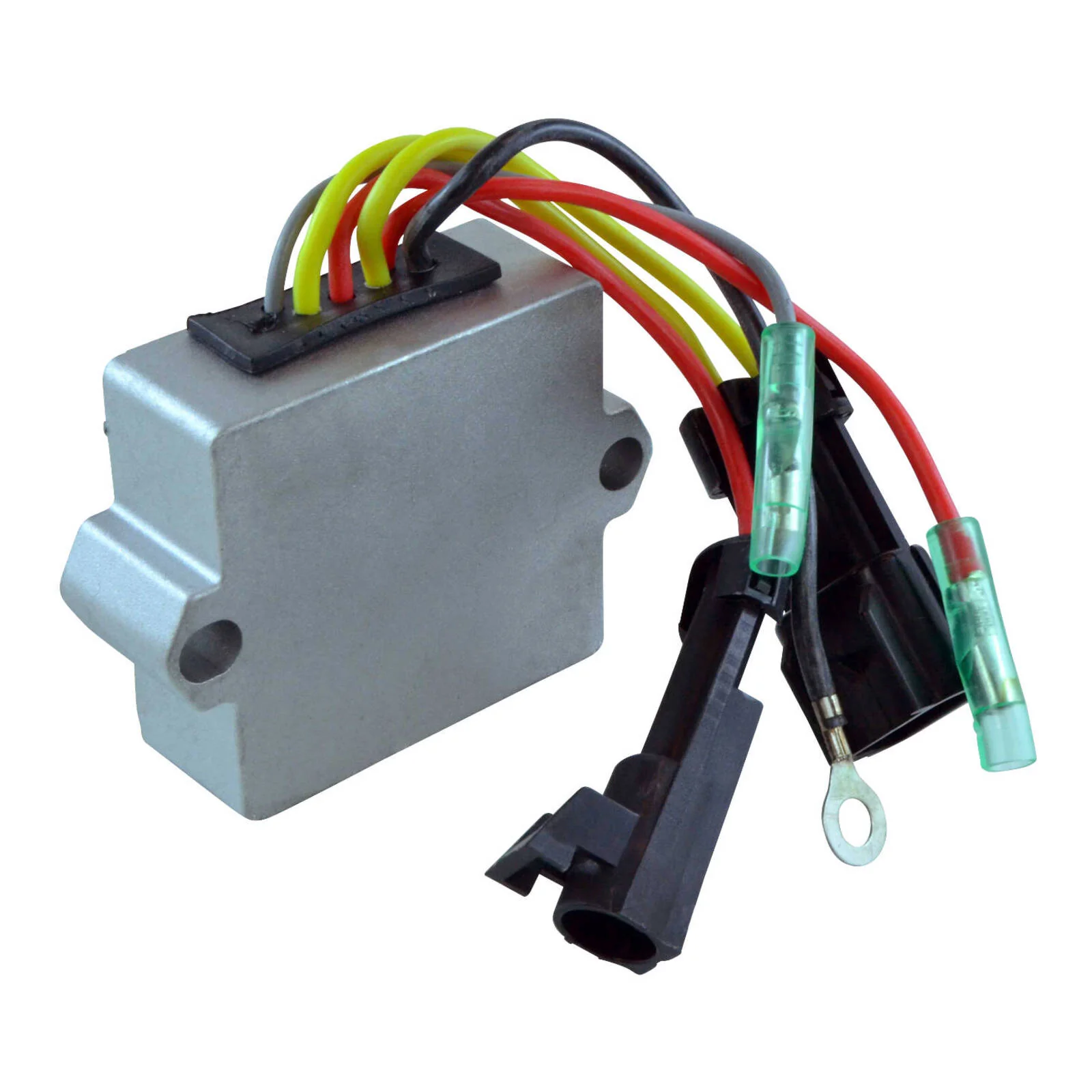

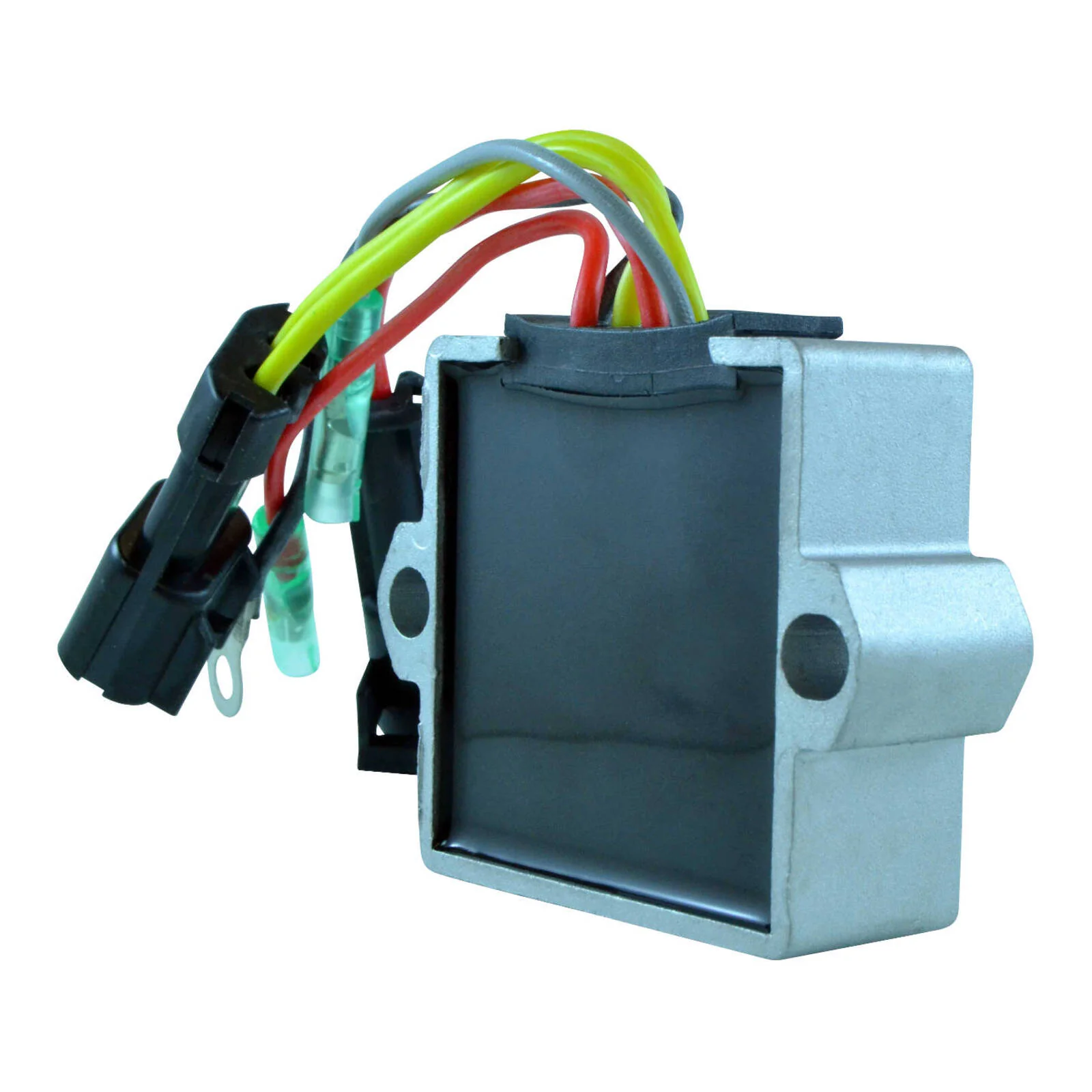

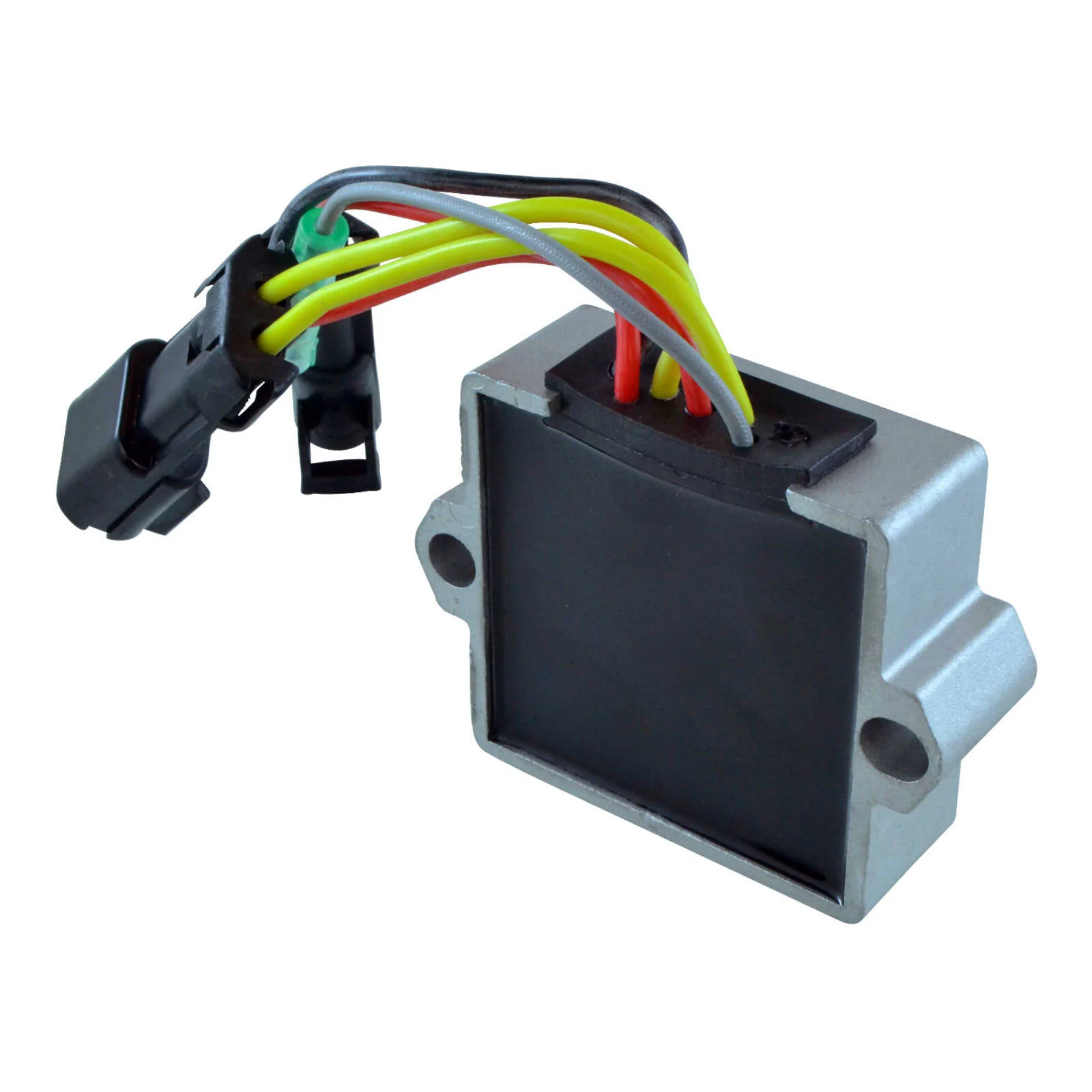

Rectifier - Mercury Outboard (RMS020-104385)

Plug-and-play, aftermarket replacement voltage regulator rectifier from RM Stator. Refer to fitment guide for models.

Dimensions:

• Width: 65mm
• Length: 65mm
• Height: 25mm
• Stator wires length: 140mm
• Battery wires length: 160mm

Other specifications:

• Number of wires: 6
• Number of plugs: 5
• Number of pins: 6
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

Details:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested
